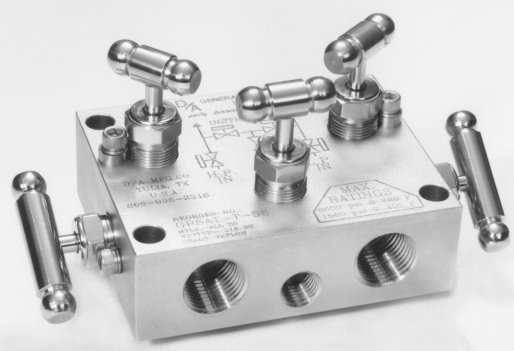

GP5AT

GP5AT Schematic

The GP5AT is a 5-valve (double block and bleed) manifold with threaded instrument and threaded process connections. It is designed for applications requiring remote mounting from the transmitter.

For higher pressure and temperature applications, the GP5AT offers reliable bubble-tight closure in a hard seat configuration. The GP5AT block valves are equipped with spring loaded packing to fully compensate for temperature and pressure fluctuations. 2 U-bolts are included for direct mounting to a 2" pipe support.

The GP5AT is available in 316L stainless steel or a lower cost series 300 stainless steel. Seals are available in teflon or grafoil.
Specifications
Max Ratings:
Teflon:
6000psi @ 220°F
1500psi @ 400°F
Grafoil:
6000psi @ 220°F
1500psi @ 950°F 		Material:
SS body and wetted parts
Also available:
Hastelloy C, Monel, Alloy 20, etc. Consult Factory
 		Design Codes:
ANSI B31.1, B16.5, NACE MR-01-75 (special order)
Material Codes:
Barstock, A479 - 316, A276-316;  Cast, ASTM-A743 CF3M, ASTM-A-351 CF3M, A 276-316.

Code  General Purpose, Remote Mount 5-valve manifold
GP5AT  1/2" FNPT (instrument) x 1/2" FNPT (process)
| Code  Seal
| T  Teflon
| G  Grafoil
| | Code  Material
| | SS  Stainless Steel, 316
| | LSS  Stainless Steel, 300 Series
| | |
Model Number
