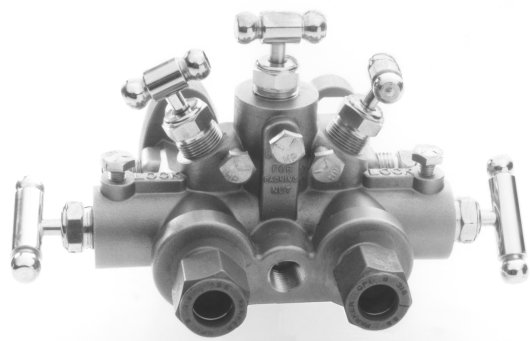

GP5T4C

GP5T4C Schematic

The GP5T4C is an investment cast 5-valve manifold with flanged instrument and standard integral tube fitting process connections. It bolts directly onto 2-1/8" to 2-1/4" center to center DP transmitters. The GP5T4C eliminates any thread contact with the process fluid (reduces possible leaks, loss of accuracy, or hazardous conditions).

The GP5T4C is available in 316L stainless steel or a lower cost series 300 stainless steel. Seals are available in teflon or grafoil.

The GP5T4C can be mounted to a 2" pipe using the D/A Mounting Bracket option for easy installation and maintenance.
Specifications
Max Ratings:
Teflon:
6000psi @ 220°F
1500psi @ 400°F
Grafoil:
6000psi @ 220°F
1500psi @ 950°F 		Material:
SS body and wetted parts
Also available:
Hastelloy C, Monel, Alloy 20, etc. Consult Factory
 		Design Codes:
ANSI B31.1, B16.5, NACE MR-01-75 (special order)
Material Codes:
Barstock, A479 - 316, A276-316;  Cast, ASTM-A743 CF3M, ASTM-A-351 CF3M, A 276-316.

Code  General Purpose, Transmount 5-valve manifold
GP5T4C  Flanged (instrument) x Tube Fitting (process)
| Code  Seal
| T  Teflon
| G  Grafoil
| | Code  Material
| | SS  Stainless Steel, 316
| | LSS  Stainless Steel, 300 Series
| | | Code  Options
| | | MB  Mounting Bracket, 2"pipe
| | | SB  Steam Block
| | | BP  1/4" purge ports, bottom, plugged
| | | |
Model Number
