GP5TU

GP5TU Schematic

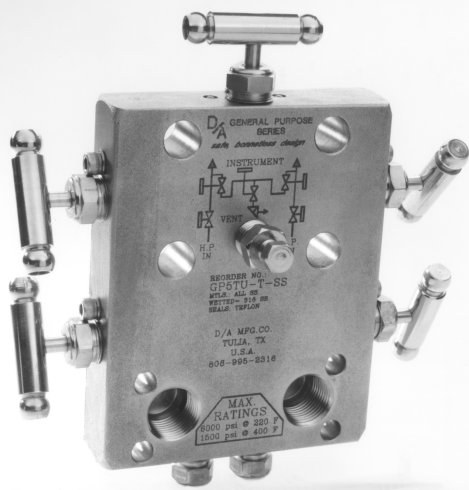

The GP5TU is a 5-valve, double block and bleed, Unimount manifold with flanged instrument connections that accommodate 2-1/8" and 2-3/16" center to center transmitters. Process connections are 1/2" NPT. It is designed to bolt onto a 2" pipe. Installation simply requires the tightening of 2 U-bolts - no mounting bracket required.

The Unimount design allows the completion of all piping prior to installation of the transmitter. The built-in manifold mounting system permits easy removal of the transmitter without disturbing the process lines or mounting connections.

The GP5TU is available in 316L stainless steel or a lower cost series 300 stainless steel. Seals are available in teflon or grafoil.
Specifications
Max Ratings:
Teflon:
6000psi @ 220°F
1500psi @ 400°F
Grafoil:
6000psi @ 220°F
1500psi @ 950°F 		Material:
SS body and wetted parts
Also available:
Hastelloy C, Monel, Alloy 20, etc. Consult Factory
 		Design Codes:
ANSI B31.1, B16.5, NACE MR-01-75 (special order)
Material Codes:
Barstock, A479 - 316, A276-316;  Cast, ASTM-A743 CF3M, ASTM-A-351 CF3M, A 276-316.

Code  General Purpose, Unimount 5-valve manifold
GP5TU  Flanged (instrument) x 1/2" FNPT (process)
| Code  Seal
| T  Teflon
| G  Grafoil
| | Code  Material
| | SS  Stainless Steel, 316
| | LSS  Stainless Steel, 300 Series
| | | Code  Options
| | | SB  Steam Block
| | | SH  Integral steam heat
| | | HM  Horizontal mounting bracket
| | | |
Model Number

Top
