SF2PTMU
UNIMOUNT
Pressure Manifold

D/A Products Safti-Fold Model Selector SF2PTMU Outline Drawing Safti-Fold Design How to Order SF2PTMU Previous Safti-Fold Model Next Safti-Fold Model

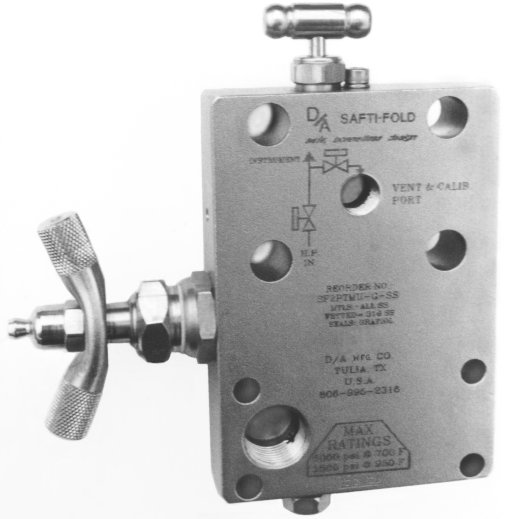

SF2PTMU

SF2PTMU Schematic
  • Valve assembly is process blowout proof
  • The packing controls both stem leakage and leakage between the manifold body and the valve.
  • Built-in zerk nut allows complete online flush-through relubrication
  • Over-torquing of main block valve handle in either direction is prevented
  • Ceramic ball (up to 8 times harder than 316SS) eliminates ball creasing and seat galling
  • Unit can withstand considerable mechanical and chemical abuse
  • Main block valve cannot be accidentally disassembled
  • Large (over 1/4") internal porting

The SF2PTMU is a 2-valve (block and vent / test) Unimount pressure transmitter manifold with a flanged instrument connection, threaded process connection and threaded test port. It is designed to bolt onto a 2" pipe. Installation simply requires the tightening of 2 U-bolts - no mounting bracket required.

The Unimount design allows the completion of all piping prior to the installation of the transmitter. The built-in manifold mounting system permits easy removal of the transmitter without disturbing the process lines or mounting connections.

A 1/4" FNPT purge port is standard.

By using our AF3 Adapter Flange, any pressure transmitter with a 1/2" FNPT inlet can be mounted to the SF2PTMU.
Specifications
Max Ratings:
Teflon:
6000psi @ 220°F
1500psi @ 450°F
Grafoil:
6000psi @ 700°F
1500psi @ 1000°F 		Material:
316SS body and wetted parts
Also available:
Nickel plated C.S.
Exotic materials: Hastelloy C, Monel, Alloy 20, etc.
Consult Factory
 		Design Codes:
ANSI B31.1, B16.5, NACE MR-01-75 (special order)
Material Codes:
Barstock, A479 - 316, A276-316;  Cast, ASTM-A743 CF3M, ASTM-A-351 CF3M, A 276-316.
Assurance of Satisfaction: When properly installed, D/A guarantees the SAFTI-FOLD® series of instrument manifolds and hand valves to be free from defective workmanship and material under normal use and service for a period of one year from the date of shipment.


Code  Safti-Fold, Unimount Pressure Manifold
SF2PTMU  Flanged (instrument) x 1/2" FNPT (process)
| Code  Seal
| T  Teflon
| G  Grafoil
| | Code  Material
| | SS  Stainless Steel, 316
| | | Code  Options
| | | AF3  Adapter Flange - installed by factory
| | | SH  Integral Steam Heating System
| | | |
Model Number
