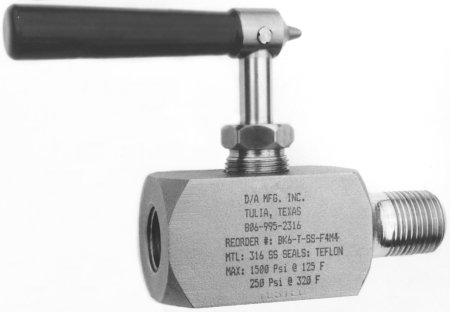

BK6 Block Valve

	A simple economical valve One-piece barstock Stainless steel body and parts are standard Heavy-duty construction for rugged conditions Packing nut stops interport and stem leakage In-line replaceable parts Large 1/4" roddable porting Handle position indicates flow direction 90 degree turn of handle opens or blocks process Optional positive stop arrowhead handle No stagnant cavities to retain process Neatly beveled corners add a touch of quality to any installation
Port Schematic	Specifications
Top View	Materials of Construction:  Body: 316SS or nickel plated C.S.  Wetted Plug: 316SS  Seal / Seat: Teflon or Ryton  Packing Nut: 303SS  Handle: 303SS Exotic materials: Hastelloy C, Monel, Alloy 20, etc. consult factory. Connections:  1/2" FNPT and 1/2" or 3/4" MNPT Design Codes: ANSI B31.1, B16.5, NACE MR-01-75(special order) Material Codes: Barstock, A479 - 316, A276-316; Cast, ASTM-A743 CF3M, ASTM-A-351 CF3M, A 276-316.

Assurance of Satisfaction: When properly installed, D/A guarantees the BK6 to be free from defective workmanship and material under normal use and service for a period of one year from date of shipment.

Code	Block Valve
BK6	1/2" FNPT and 1/2" or 3/4" MNPT
|	Code	Seal and Seat
|	T	Teflon
|	R	Ryton
|	|	Code	Body
|	|	S	Stainless Steel, 316
|	|	C	Nickel Plated C.S.
|	|	|	Code	Wetted Plug
|	|	|	S	Stainless Steel, 316
|	|	|	|	Code		Connections
|	|	|	|	outlet	inlet	Choose one of each
|	|	|	|	F4	F4 M4 M6	1/2" FNPT  1/2" MNPT  3/4" MNPT
|	|	|	|	|	|	Code	Options
|	|	|	|	|	|	SW	Socket weld male connection
|	|	|	|	|	|	AH	PVC coated arrowhead handle
|	|	|	|	|	|	L2	2-1/2" extended body length
|	|	|	|	|	|	IBV	Integral bleed valve
|	|	|	|	|	|	|
							Model Number
